Twintrack H

Twintrack H

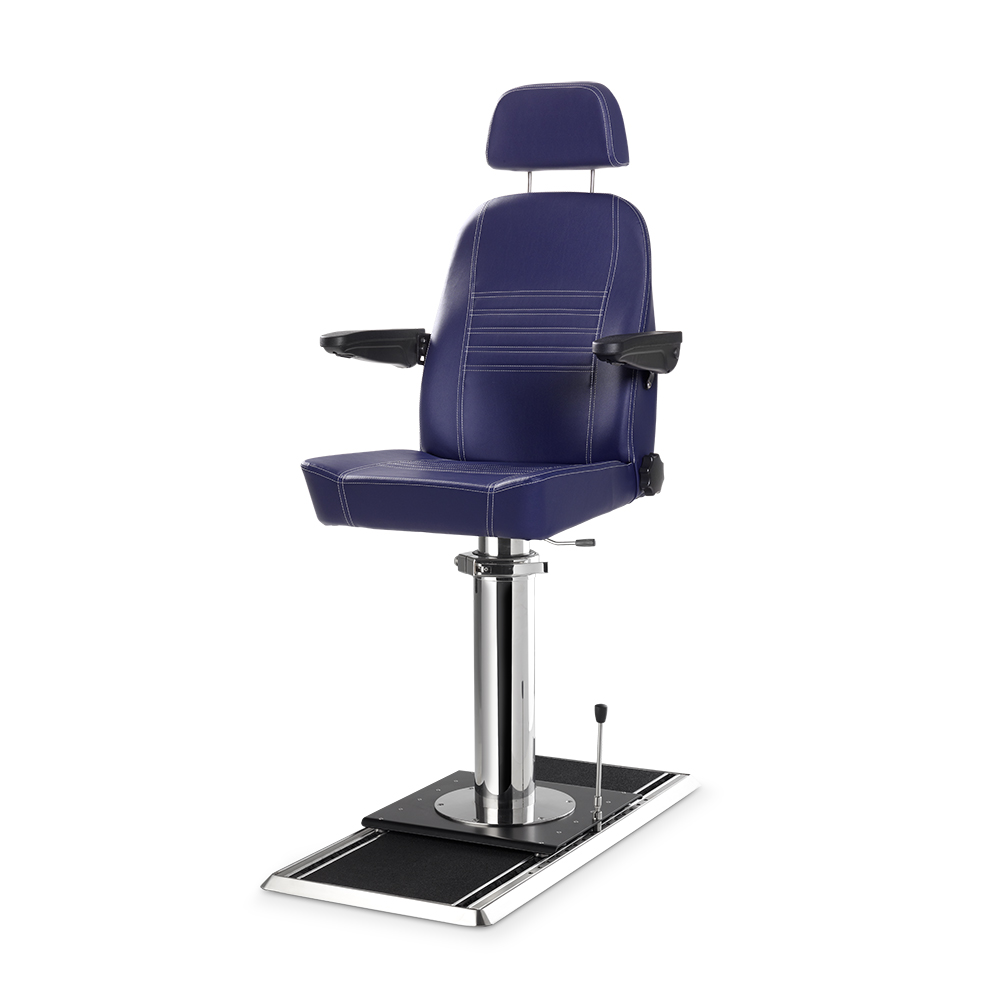

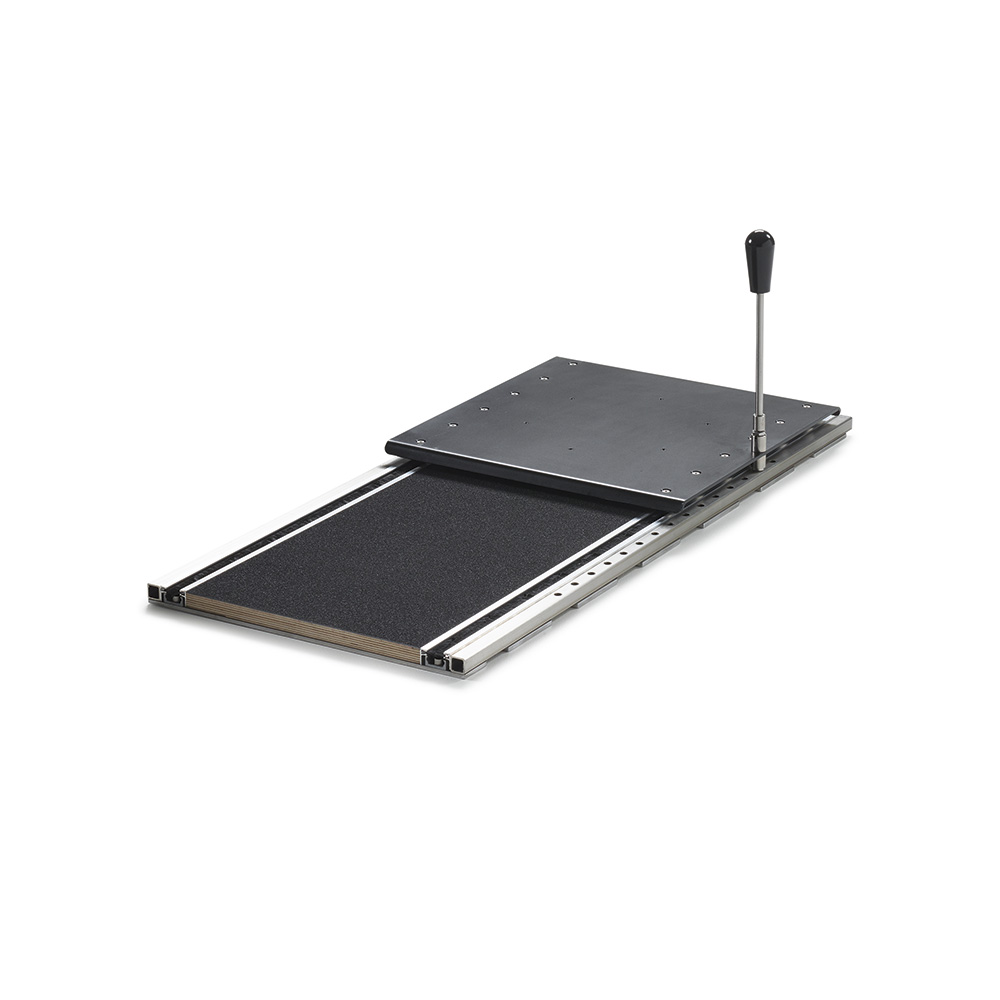

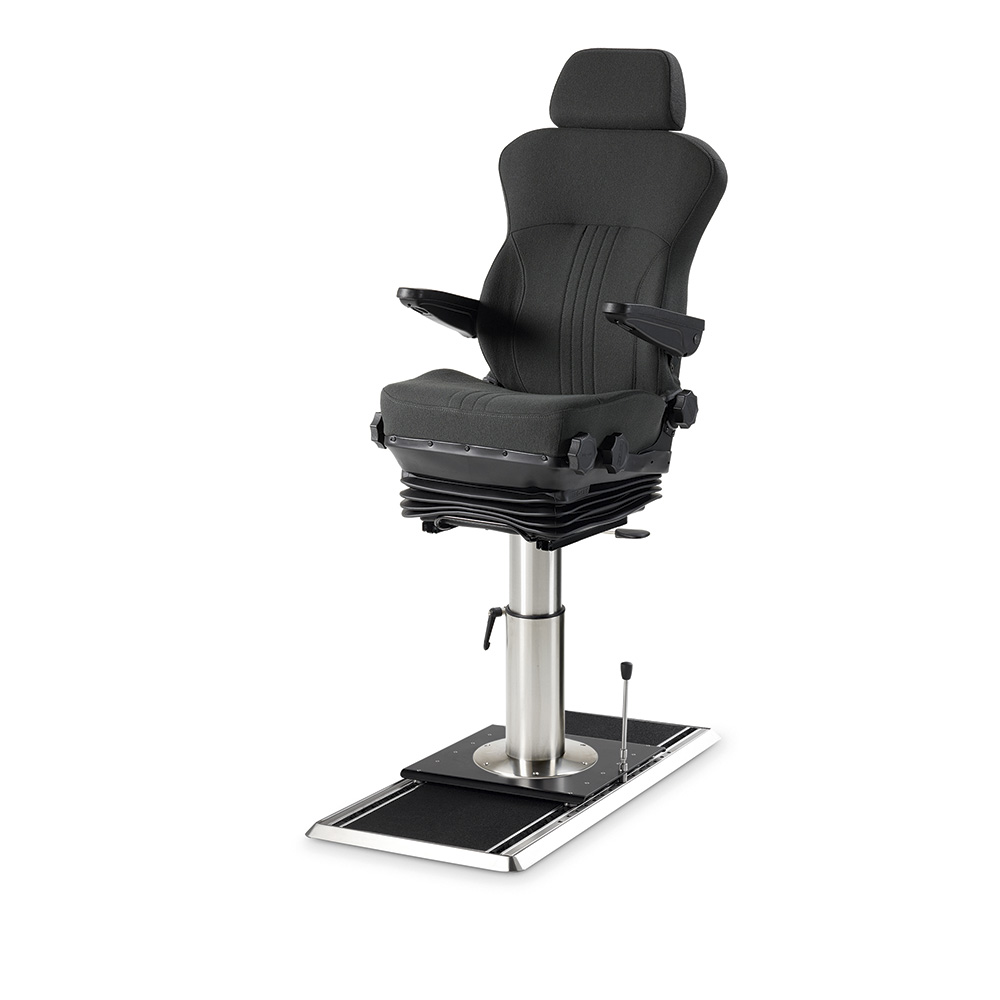

Lowest decktrack, height only 26 mm. Width 450 mm. With linear guides with brush covers and stainless steel frame. The carrier for the helm seat locks each 40 mm. Locking by a spring loaded manual operated handle. The top plate has an anti slip layer, but can be supplied with a customized layer.

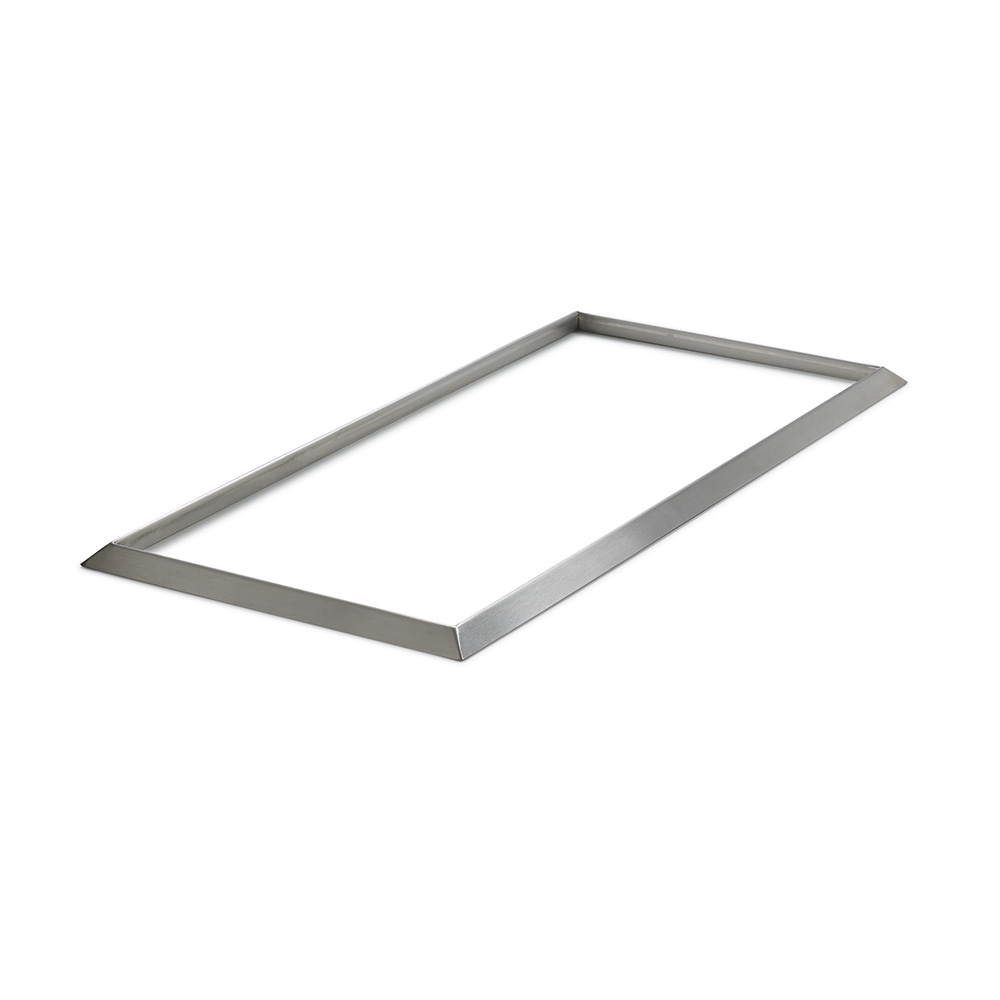

Twintrack is suitable for flush mount and deck mount purposes. A stainless steel bulk head frame with 45° angle surface is available for deck mount purposes.

Attention! The system needs to be plain mounted for smooth sliding.

Lengths over 2500 mm on request.
Item no. Item Price / Euro
[without VAT]		 Price / Euro
[with VAT]
68310Twintrack 1010-H, deckslide, length 1010 mm, width 450 mm, stroke 550 mm, locking by handle, for built-in purposes, for deck mount purposes bulk head frame available: item no. 684101550,001844,50
68311Twintrack 1170-H, deckslide, length 1170 mm, width 450 mm, stroke 710 mm, locking by handle, for built-in purposes, for deck mount purposes bulk head frame available: item no. 684111625,001933,75
68312Twintrack 1490-H, deckslide, length 1490 mm, width 450 mm, stroke 1030 mm, locking by handle, for built-in purposes, for deck mount purposes bulk head frame available: item no. 684121800,002142,00
68313Twintrack 2000-H, deckslide, length 2000 mm, width 450 mm, stroke 1540 mm, locking by handle, for built-in purposes, for deck mount purposes bulk head frame available: item no.684132400,002856,00
68314Twintrack 2500-H, deckslide, length 2500 mm, width 450 mm, stroke 2040 mm, locking by handle, for built-in purposes, for deck mount purposes bulk head frame available: item no. 684143250,003867,50
68410S/S bulkhead frame for Twintrack 1010 mm265,00315,35
68411S/S bulkhead frame for Twintrack 1170 mm289,00343,91
68412S/S bulkhead frame for Twintrack 1490 mm326,00387,94
68413S/S bulkhead frame for Twintrack 2000 mm386,00459,34
68414S/S bulkhead frame for Twintrack 2500 mm460,00547,40

Valid Value Added Tax (VAT) for deliveries to private customers within the EU is 19%. For residential customers outside the EU, the VAT in the respective home country (= shipping address) is taken.

Order form
